When you’re shopping for a drone or trying to understand why some aerial footage looks cinematic while other footage looks noisy or “phone-like,” one factor matters more than anything else, and that’s the size of the image sensor.
Resolution, frame rates, aperture, and colour profiles all play important roles, but none has a bigger impact on overall image quality than the sensor itself.
If you’ve ever looked into photography or videography, the same applies to cameras and video cameras. For example, my Sony ZV-E10 ii has an APS-C type sensor (measuring 23.3 x 15.5 mm), which is larger than my Sony ZV-1, with a 1-inch sensor (13.2mm x 8.8mm). The image quality is noticeable between the two.
But we are here to discuss image sensors in drones. I currently own the DJI Mini 4 Pro with its 1/1.3 inch sensor and the DJI Air 3S with the larger 1-inch sensor. I love the portability of the Mini 4 Pro for travelling, but I much prefer the image quality I get from the Air 3S. We can see in the image below the size difference in the gimbal, which houses the image sensor.
The image sensor is the digital “film” inside every drone camera, responsible for capturing light and turning it into the photos and videos you see. Larger sensors capture more light, which leads to cleaner low-light performance, smoother highlight rolloff, better dynamic range, and more detailed images. This is why high-end drones like the DJI Inspire 3, with its full-frame 8K-capable sensor, look dramatically better than entry-level drones like the DJI Neo, which uses a much smaller 1/2″ sensor.
In this article, I’ll break down what image sensors are, how they work, why some DJI drones cost significantly more than others, and how consumer drone sensors compare to professional mirrorless cameras.
What Is an Image Sensor and How Does It Work?
When light passes through the lens, it hits millions of tiny light-sensitive sites on the sensor called photosites (or pixels). Each photosite measures how much light it receives and turns that information into an electrical signal, which the camera’s processor then converts into the final image.
Along with photosites, sensors use microlenses to direct more light into each pixel and a colour filter array (usually a Bayer filter) to create full-colour images. But the biggest factor affecting image quality isn’t megapixel count, it’s the physical size of the sensor.
A larger sensor has physically larger photosites, which collect more light. This leads to:
- Better low-light performance
- Less noise
- Higher dynamic range (more detail in shadows and highlights)
- Improved colour depth and cleaner Log footage
Sensor size also affects depth of field. Smaller sensors tend to keep almost everything in focus, while larger sensors, like the full-frame camera on the DJI Inspire 3, allow for more cinematic background separation.
Fujifilm explains this concept far better than I ever could on their website here.
Image Sensor Size Comparison
Here are some common image sensor sizes found in DJI Drones.
Here’s a list of DJI drones and their image sensor sizes:
| Series | Model | Sensor Size(s) |
|---|---|---|
| Mavic Series | DJI Mavic 4 Pro | Main: 4/3″ Medium Tele: 1/1.3″ Tele: 1/1.5″ |
| DJI Mavic 3 Pro | Main: 4/3″ Medium Tele: 1/1.3″ Tele: 1/2″ | |
| Air Series | DJI Air 3S | Wide: 1″ Medium Tele: 1/1.3″ |
| DJI Air 3 | Dual Cameras: Both 1/1.3″ | |
| Flip Series | DJI Flip | 1/1.3″ |
| Mini Series | DJI Mini 5 Pro | 1″ |
| DJI Mini 4 Pro | 1/1.3″ | |
| DJI Mini 3 | 1/1.3″ | |
| DJI Mini 4K | 1/2.3″ | |
| DJI Mini 2 SE | 1/2.3″ | |
| Neo Series | DJI Neo 2 | 1/2″ |
| DJI Neo | 1/2″ | |
| FPV | DJI Avata 2 | 1/1.3″ |
| DJI O4 Air Unit | 1/1.3″ | |
| Inspire Series | DJI Inspire 3 | Full-Frame (35mm) |

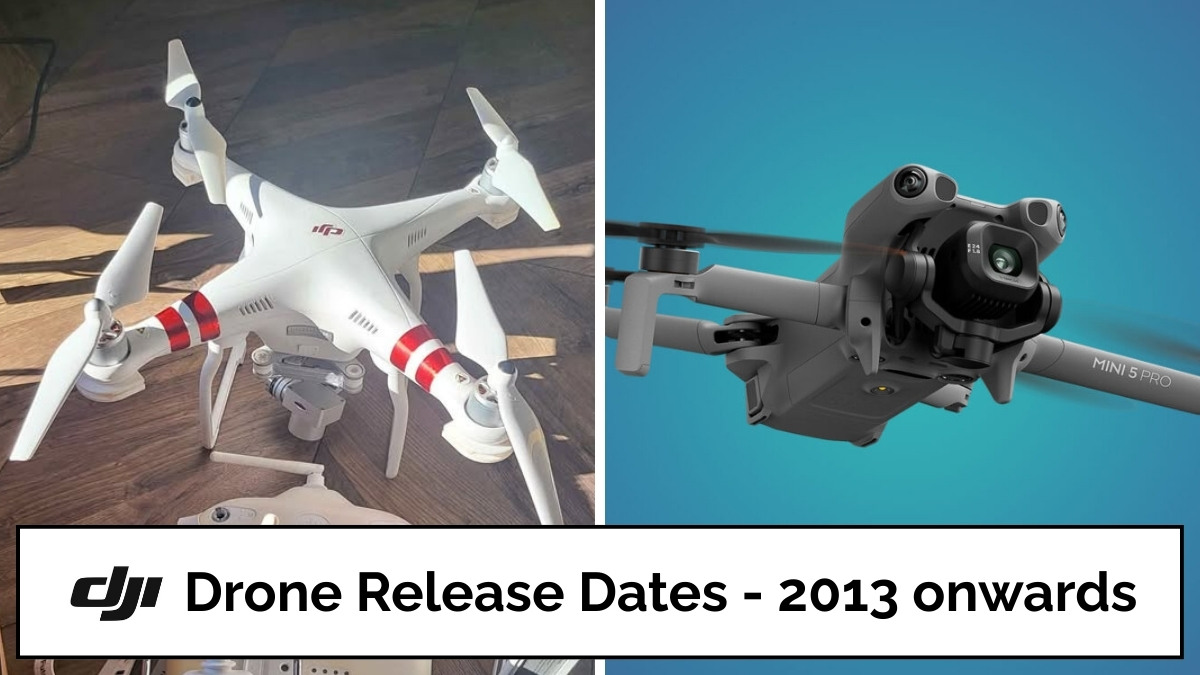

You can see the full evolution of DJI Drones here. From 2013, with the Phantom 1 to the most recent model on the market.
Drones with larger sensors, such as the Inspire 3, consistently deliver cleaner, more detailed, and professional-looking footage than smaller-sensor models, even when their megapixel counts are similar.
Understanding sensor sizes is especially important for DJI users, since the company offers drones across a wide range of formats, from tiny smartphone-style sensors to true cinema-grade full-frame cameras.
Which Sensor Size Do You Actually Need?
Choosing the right drone sensor size depends heavily on what you plan to shoot and your experience level. Bigger isn’t always better—what matters most is matching the sensor to your needs.
Beginners and Hobbyists
If you’re just getting started or flying drones for fun, smaller sensors like 1/2.3″ or 1/1.3″ are more than sufficient. They’re found on compact drones such as the DJI Mini series, which are lightweight, affordable, and easy to fly. While these sensors can’t capture the same depth and low-light performance as larger models, they still produce sharp, vibrant images and video that are perfect for social media or casual photography.
Here’s an example video shot on my DJI Mini 4 Pro, which has a 1/1.3″ sensor.
It goes to show, you can still get cinematic footage from a DJI Mini 4 Pro and its smaller sensor.
Travel and Compact Creators
For creators who travel frequently or prioritise portability, slightly larger sensors like 1″ sensors strike a good balance between image quality and compact design. Drones like the DJI Air 3S offer excellent low-light performance, better dynamic range, and more control over depth of field, all without the bulk of professional cinema drones. These drones are ideal for travel bloggers, lifestyle videographers, and creators who need quality footage on the go. I find it amazing that DJI have managed to squeeze a 1″ sensor into their Mini 5 Pro whilst keeping the weight to ~250g.
Professional Filmmakers
Full-frame and APS-C sensors are where cinematic filmmaking truly shines. Drones such as the DJI Inspire 3 with a full-frame Zenmuse X9 allow for stunning image quality, excellent colour depth, and cinematic background separation. These drones excel in low-light conditions, high dynamic range scenarios, and controlled filming environments. Professionals benefit from the flexibility of interchangeable lenses and the creative possibilities that larger sensors offer.
Surveying and Industrial Applications
For mapping, surveying, and industrial inspections, sensor size is often less about cinematic quality and more about efficiency and accuracy.
Medium-format or smaller sensors can be sufficient if paired with precise optics and software, but larger sensors can improve data quality in low-light or challenging conditions. The choice here depends on the balance between flight time, payload capacity, and the level of detail required for the task.
Conclusion: Choosing the Right Drone Sensor for Your Needs
Understanding sensor size is key to getting the most out of your drone. While smaller sensors are lightweight, travel-friendly, and perfect for hobbyists, larger sensors, like the 4/3 sensor on the Mavic 4 Pro or the full-frame Zenmuse X9 on the Inspire 3, unlock superior image quality, low-light performance, and cinematic depth of field.
As drone technology evolves with trends like computational imaging, stacked sensors, and global shutters, sensor size will continue to define the difference between good footage and professional-grade imagery. Choosing the right sensor ensures your drone delivers the results you need, whether you’re capturing social media content, cinematic films, or industrial surveys.
Frequently Asked Questions
What sensor size is best for drone photography?
Larger sensors (such as 4/3 or full-frame) deliver better dynamic range, low-light performance, and overall image quality. Smaller sensors work well for beginners or casual use.
Is a 1-inch sensor good enough for professional work?
Yes—1-inch sensors offer excellent quality and are widely used by travel creators and many professionals. However, full-frame sensors still provide the highest cinematic performance.
Why do full-frame drone cameras look more cinematic?
Full-frame sensors gather more light and produce shallower depth of field, smoother highlight rolloff, and better low-light results—key elements of a cinematic look.
Does a higher megapixel count mean better image quality?
Not necessarily. Sensor size matters more. A larger sensor with fewer megapixels often outperforms a tiny sensor with many megapixels, especially in low light.
What’s the difference between a 4/3 sensor and full-frame?
A 4/3 sensor is smaller, lighter, and more compact, while a full-frame sensor is roughly four times larger. Full-frame sensors offer better dynamic range and cleaner footage.
Which DJI drone has the best image quality?
The DJI Inspire 3 offers the best image quality thanks to its full-frame Zenmuse X9 sensor, interchangeable lenses, and professional-grade video formats.
Do I need a large sensor for industrial or mapping work?
Not always. Many industrial applications prioritize accuracy and software processing over cinematic quality. Smaller sensors can be sufficient depending on the task.
How do sensor sizes affect low-light performance?
Larger sensors gather more light per pixel, resulting in cleaner images with less noise. This makes a noticeable difference at dusk, night, or in dim environments.
